Building the Voron Switchwire

The instruction manual can be found here: link.

Additional to the manual, I watched the assembly videos of Nero3d which can be found here - they were a great help!

I assembled the frame directly after the screws arrived.

frame

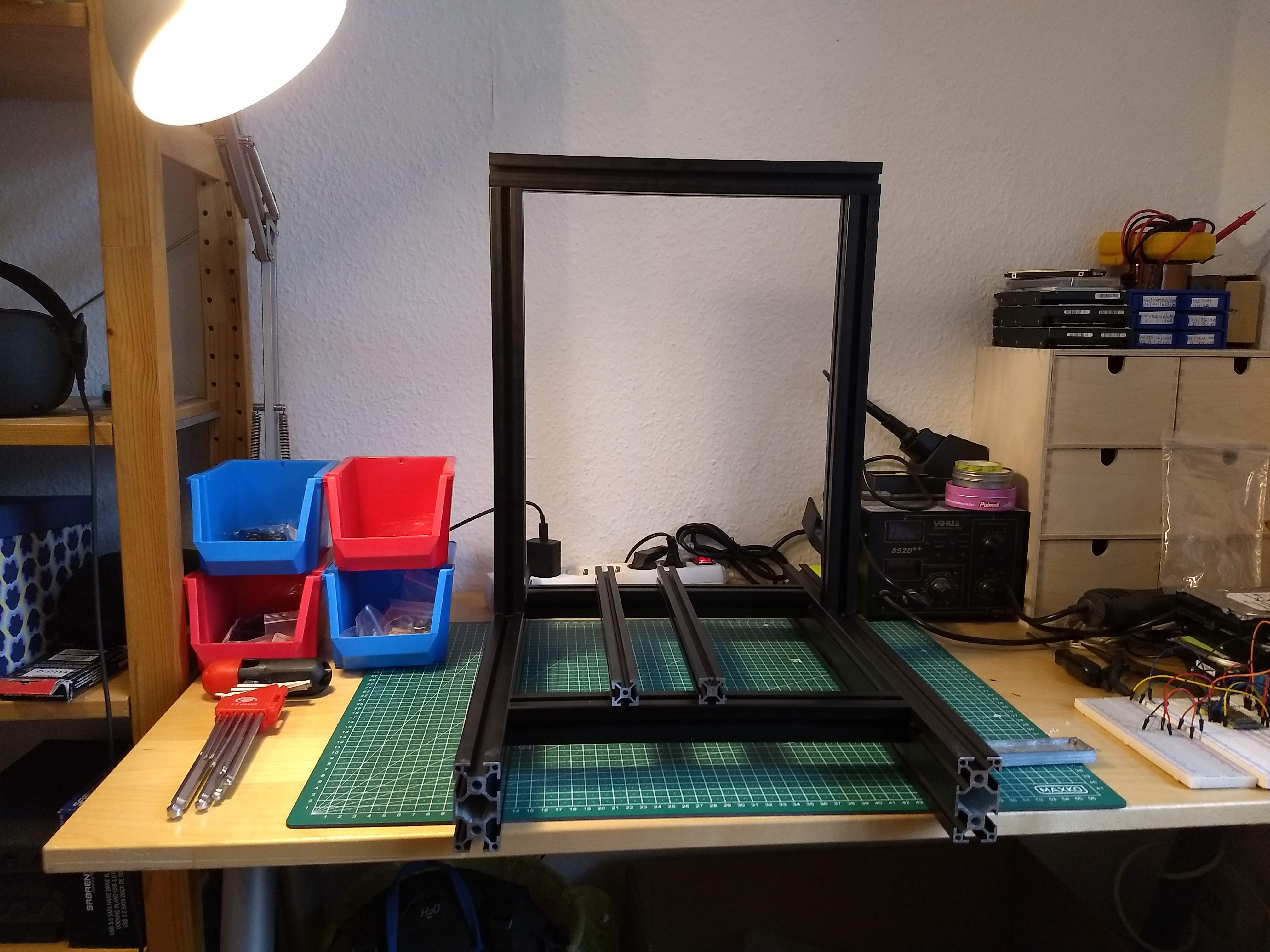

frame assembled

Side Note: To clean the linear rails, I placed the sleds for a night in alcohol to get rid of dirt and oil. Afterwards, I scrubbed them with an old t-shirt and applied some assembly lube to the bearings.

frame

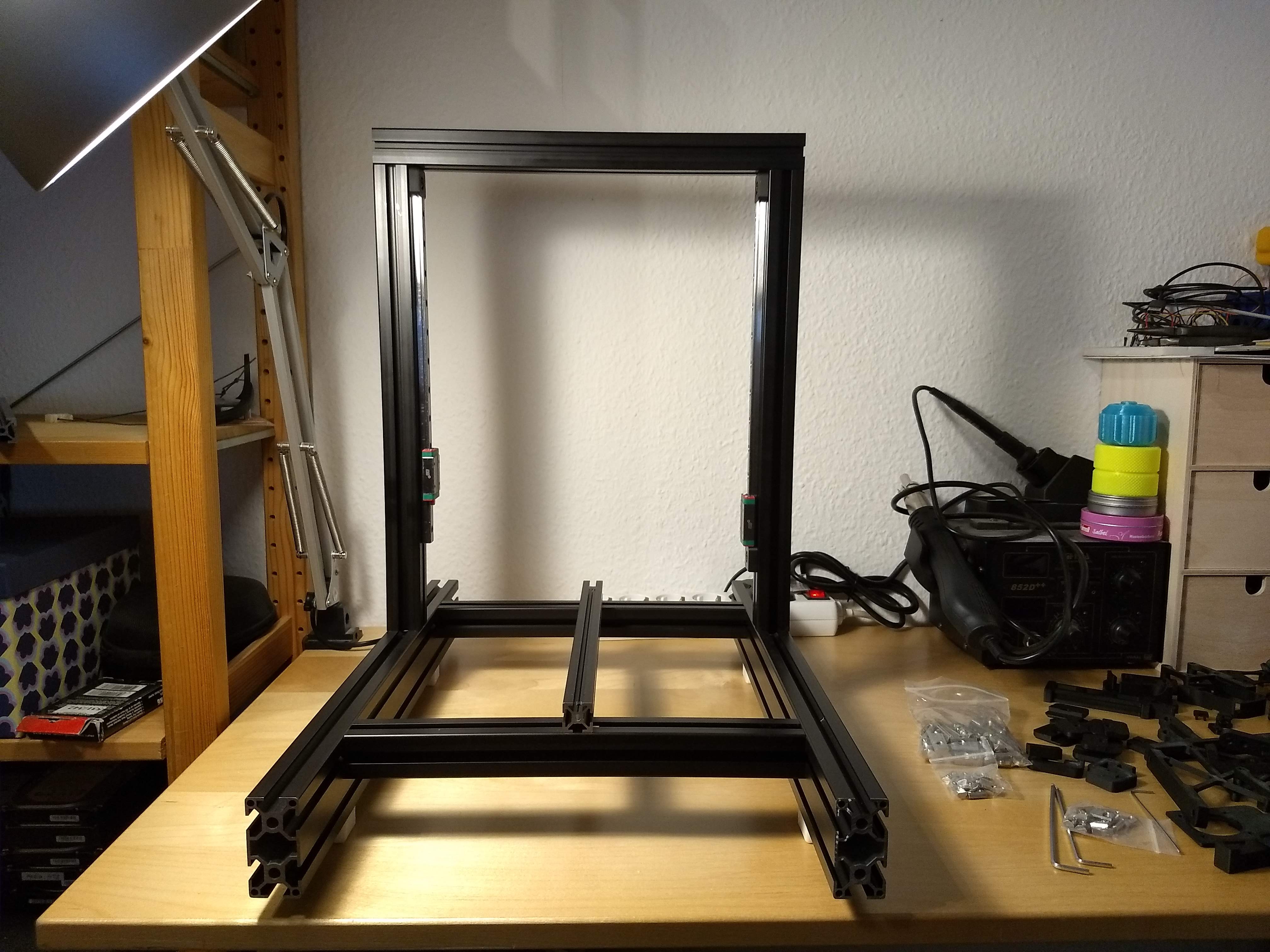

xz-rails attached

frame

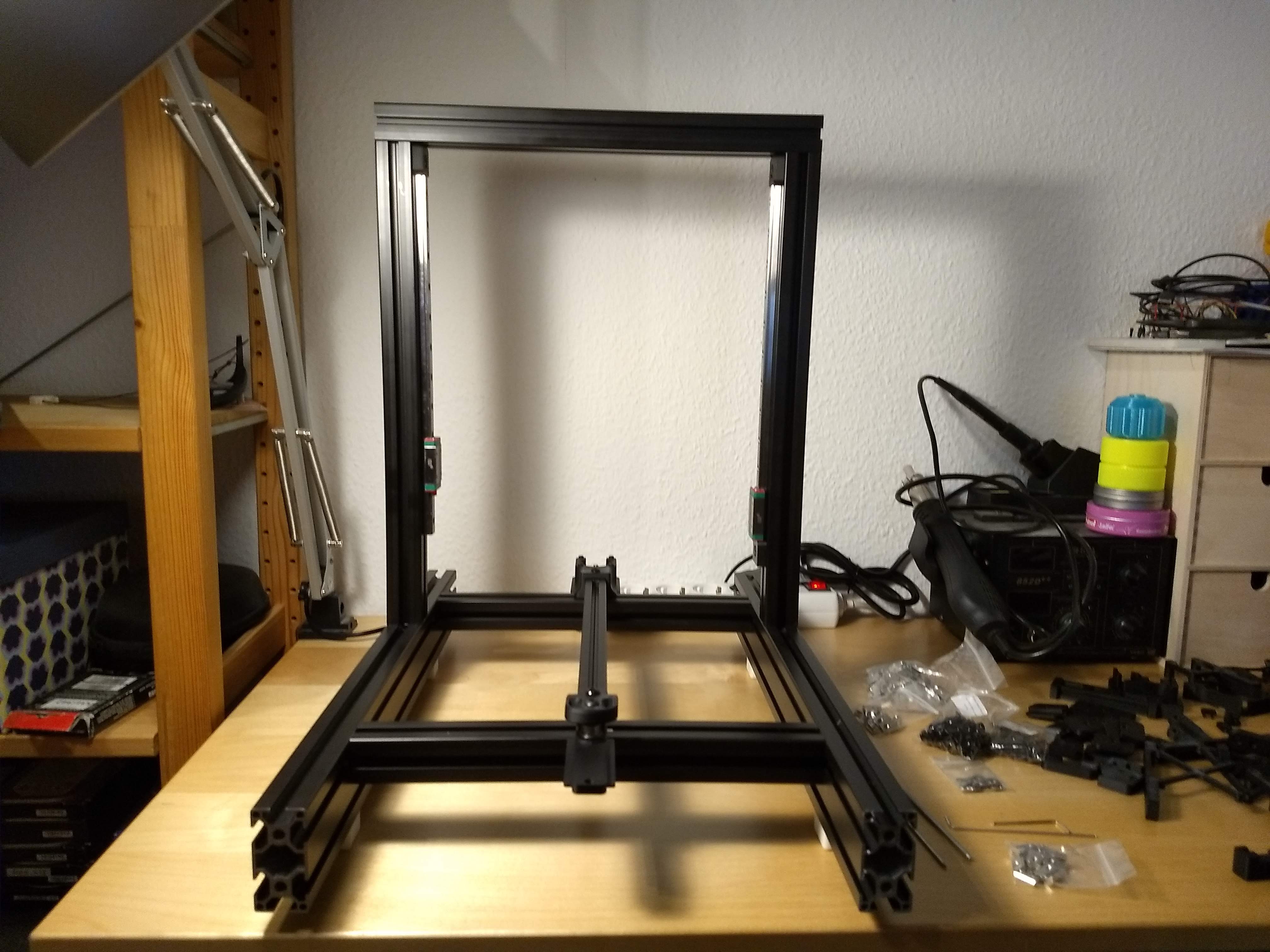

y-rail attached

frame

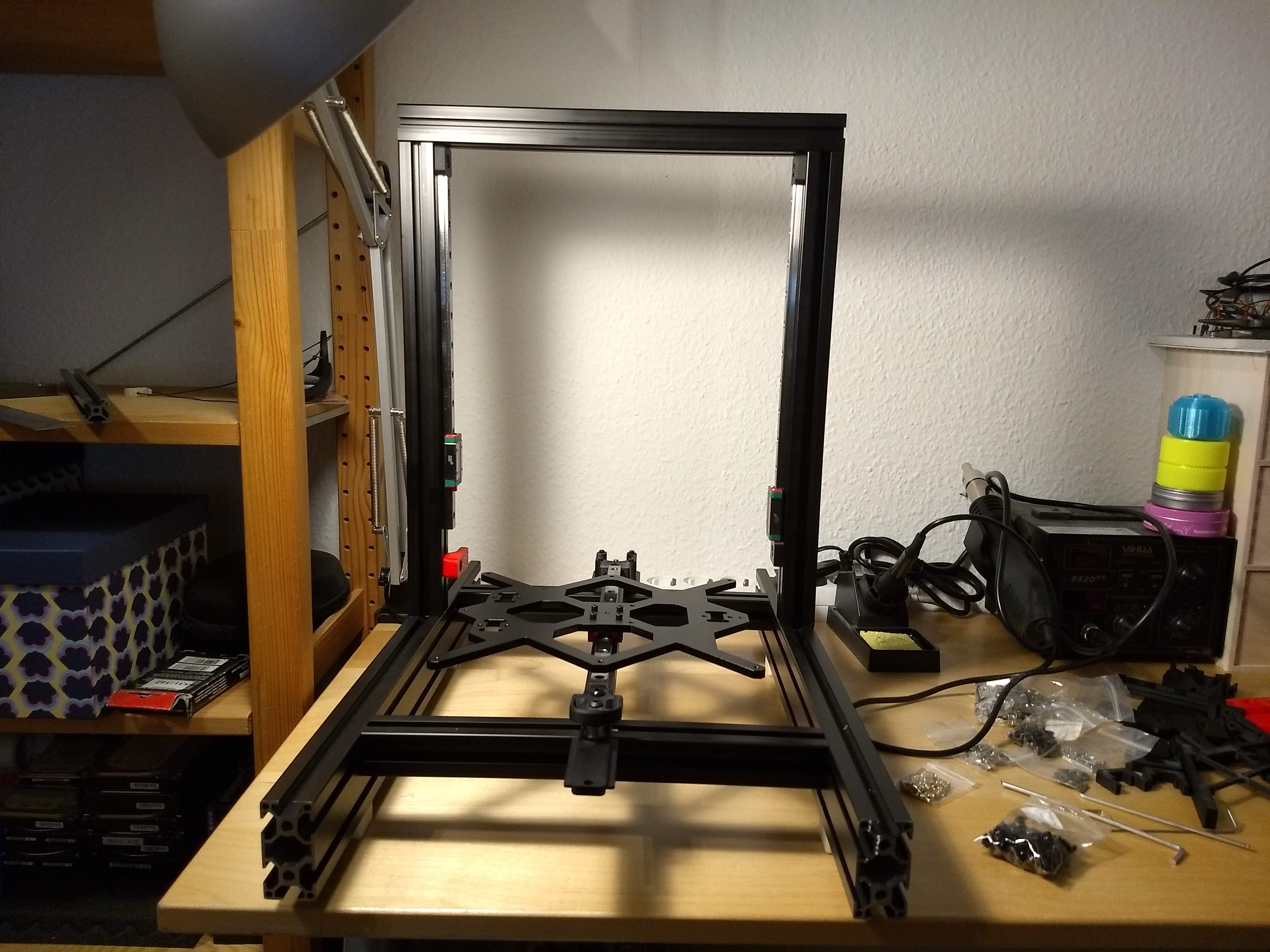

attached the bed carriage

frame

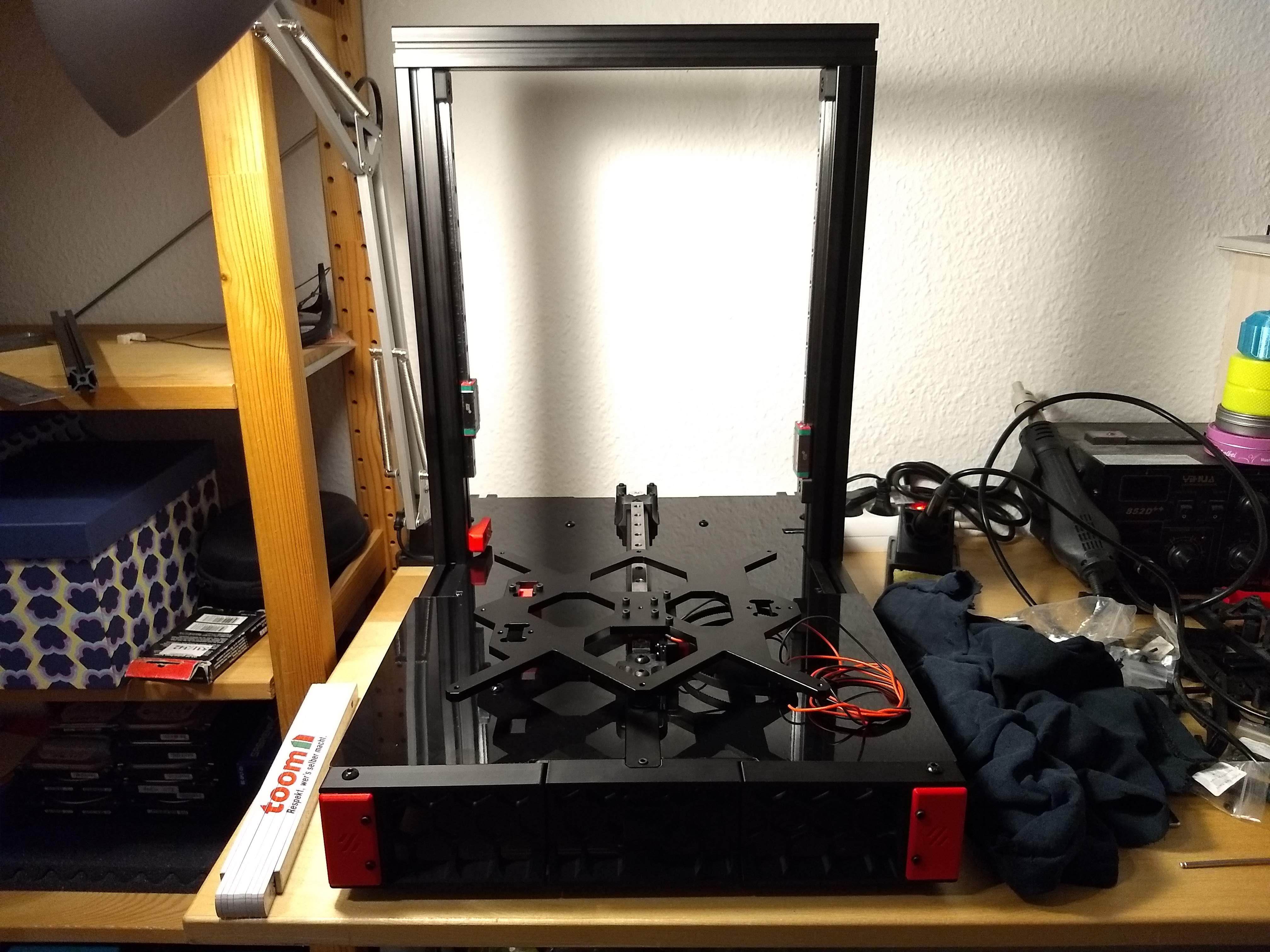

added the deck panels

frame

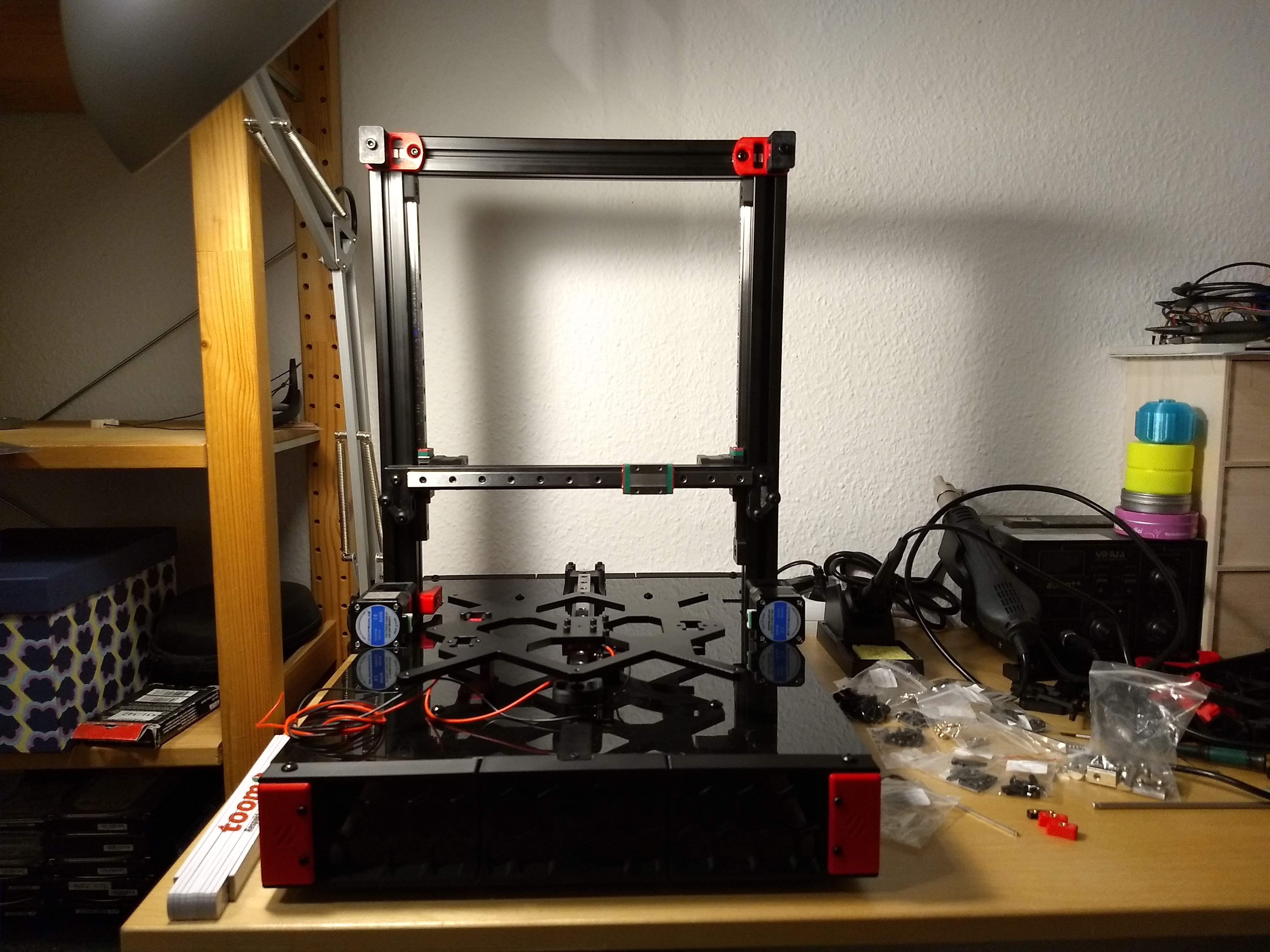

attached the motors for xz as well as their idlers and the x&z-axis

frame

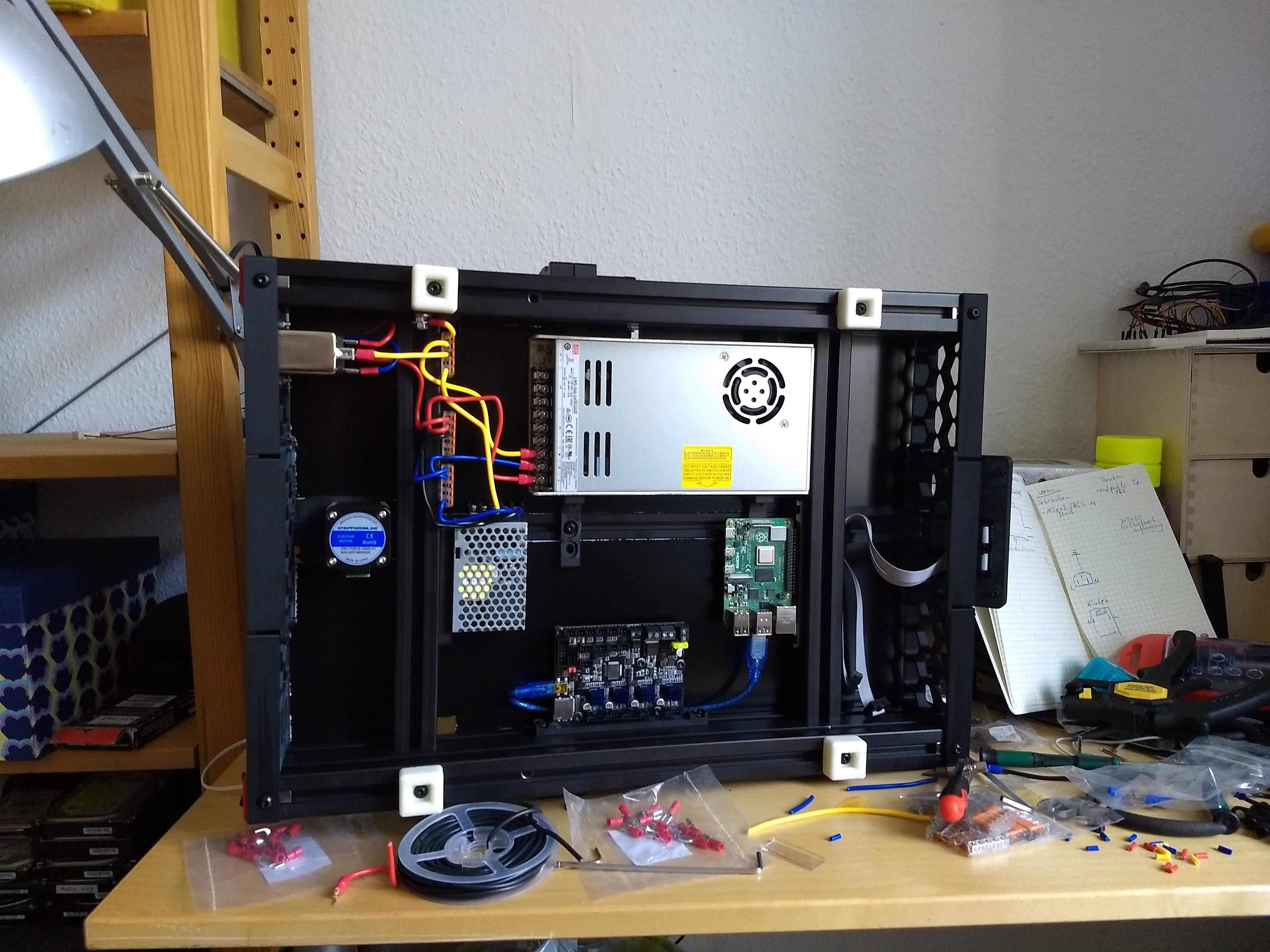

electric compartment with 24V PSU + 5V PSU + skr mini e3 v2 + raspi4

frame

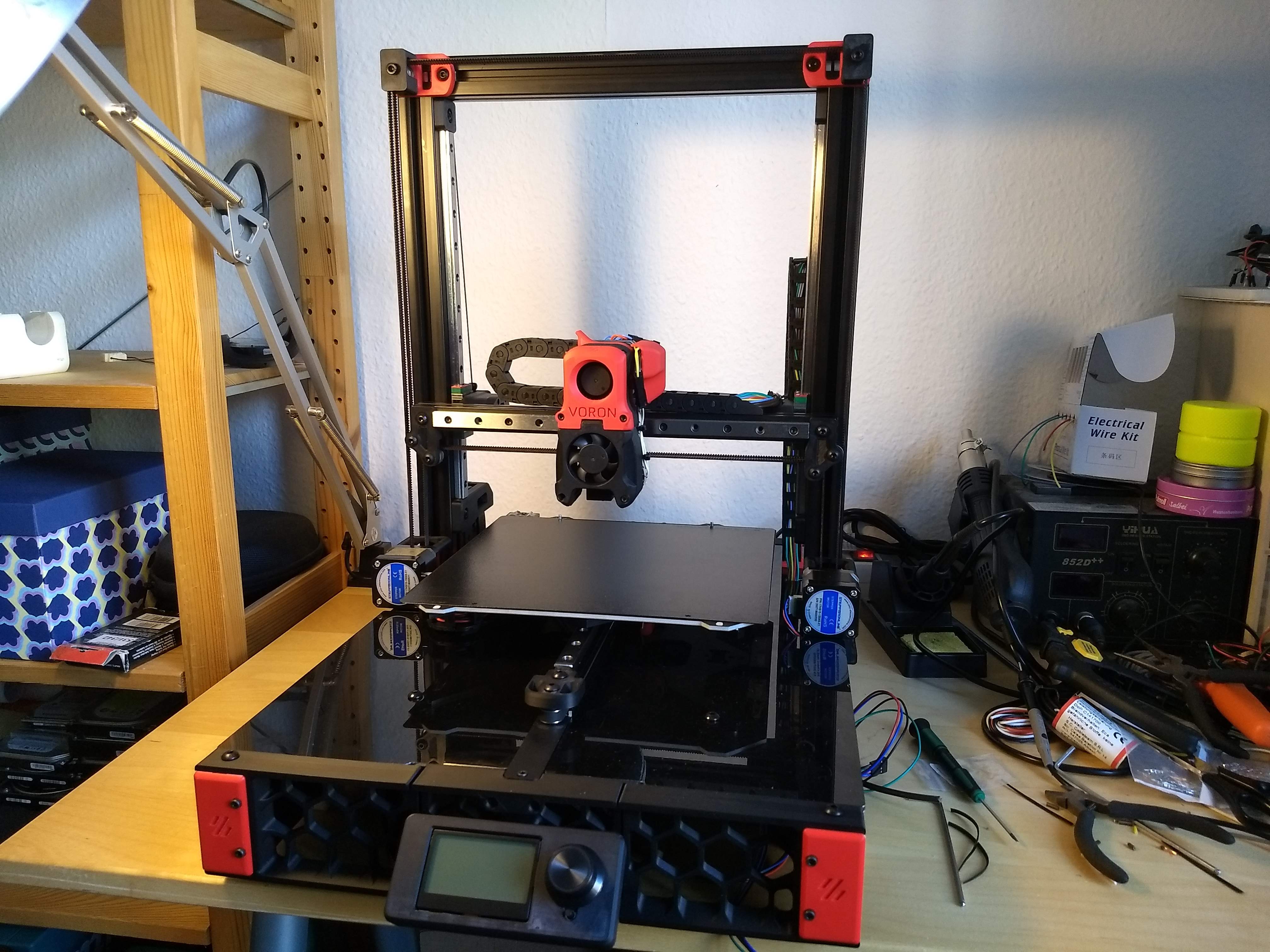

Attached the clockwork toolhead
